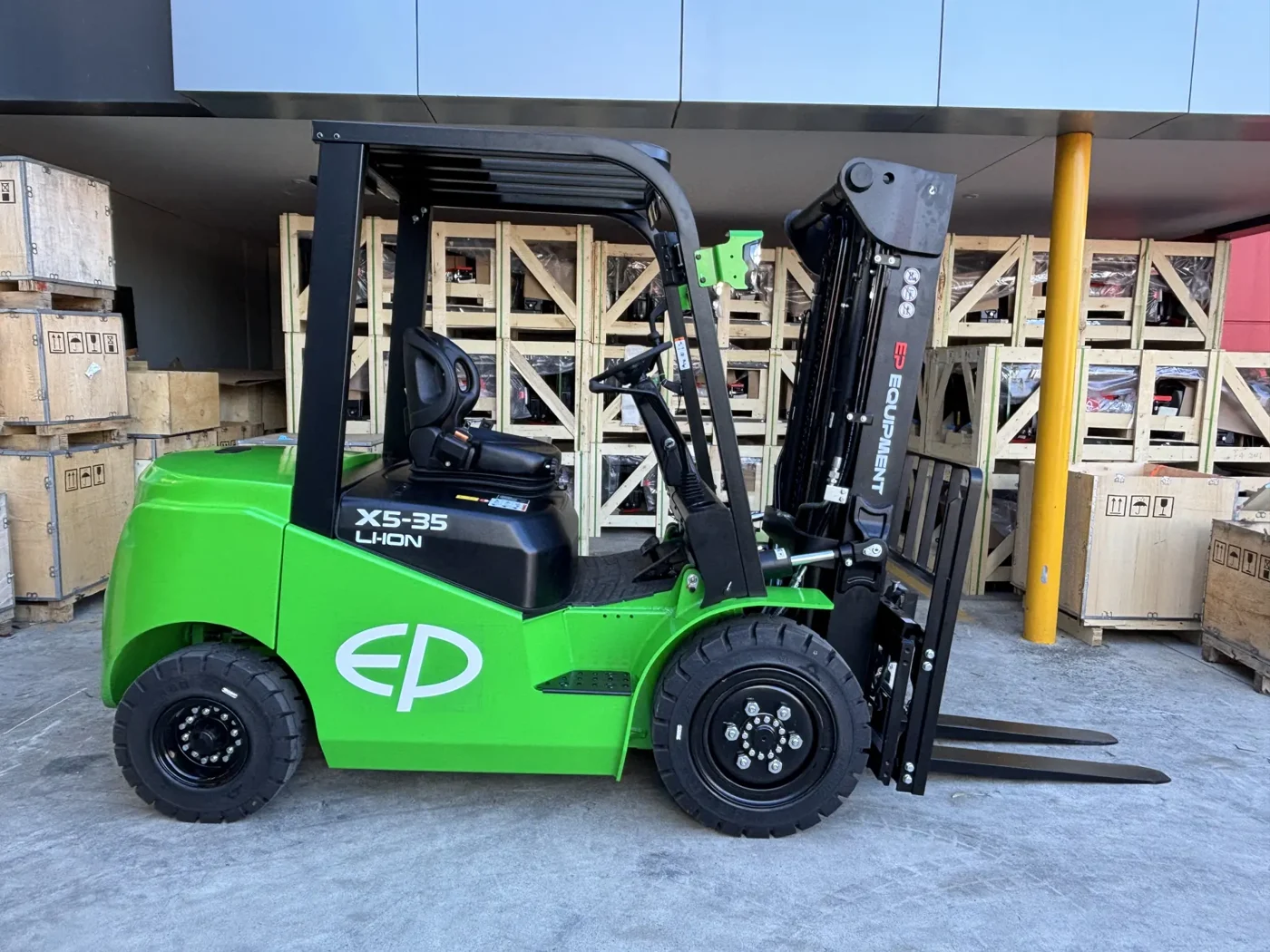

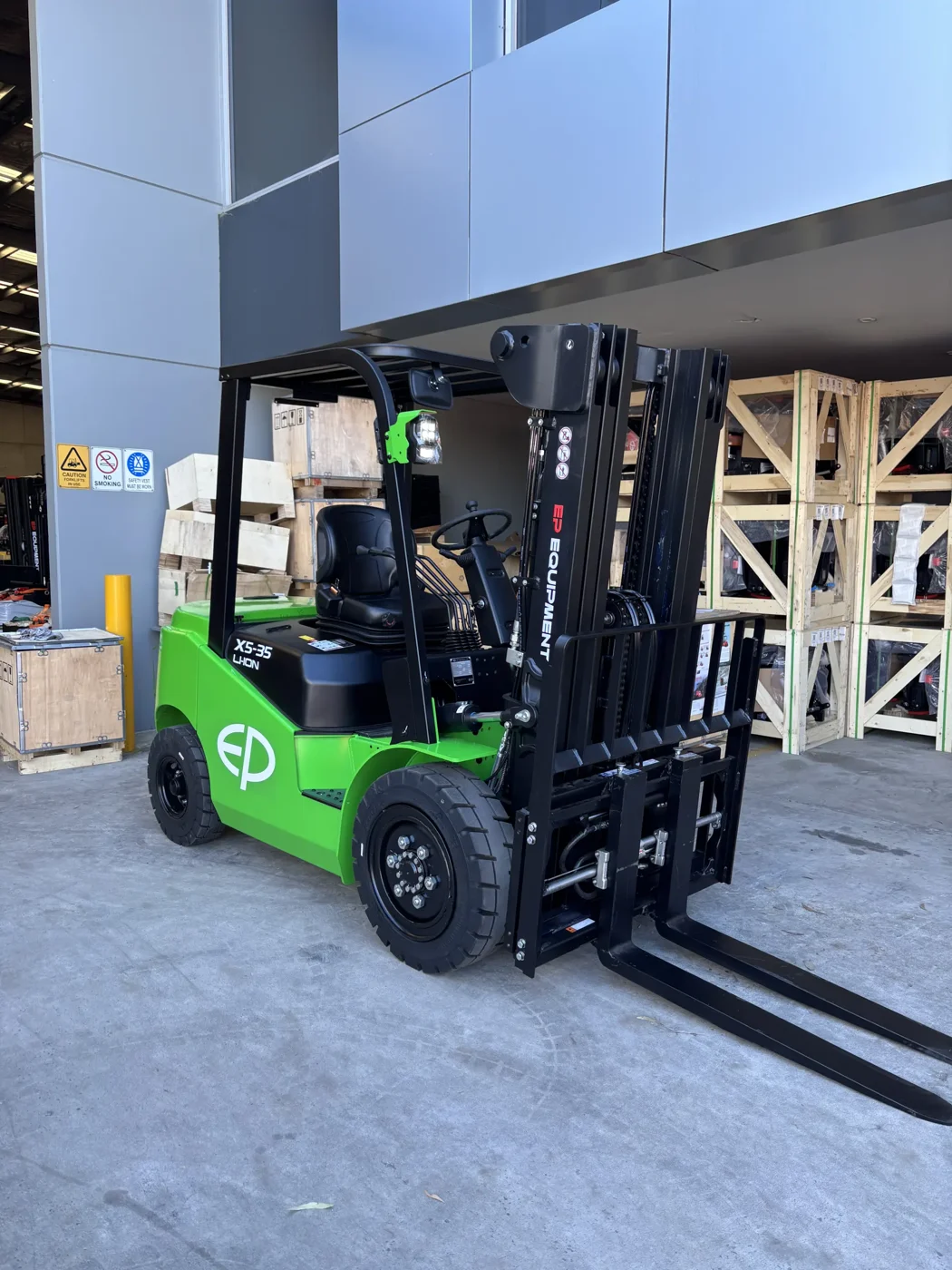

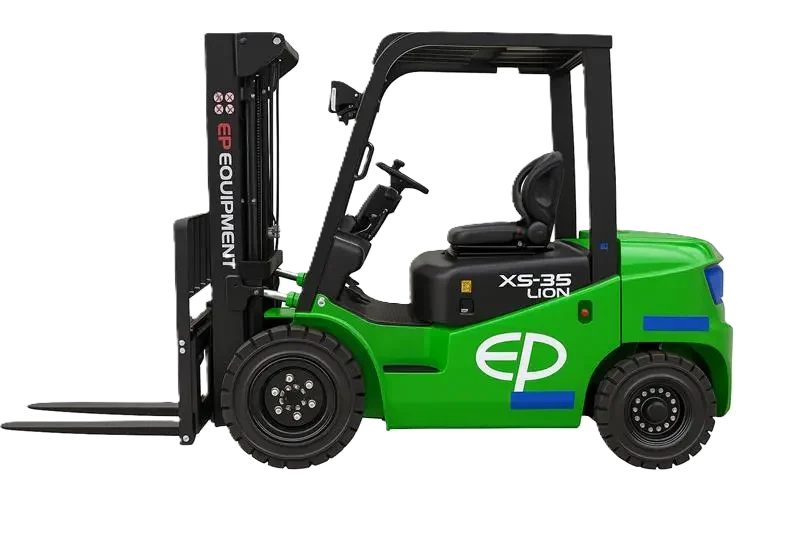

EP · 3.5 tonne · lithium
Genuine 3.5 tonne muscle for steel, stone and heavy pallets.
The 60A charger requires a three-phase supply.
Indicative from-rates, ex GST, for approved commercial credit on a 36-month fully maintained term. Every price shown is a starting point, not a fixed offer — your written quote reflects site assessment, annual hours, configuration, delivery zone and credit assessment, and may be higher where risk factors apply. Reviewed August 2026.
KEY SPECIFICATIONS
- Rated capacity
- 3,500 kg
- Mast
- 4.5 m triplex
- Full free lift
- No
- Battery
- 80V / 280Ah lithium (≈22.4 kWh)
- Charger
- 80V/60A charger (three-phase)
- Site power needed
- Three-phase supply
- Tyres
- Solid tyres
- Attachments
- Side shift, 4-spool valve, LED work + warning lights, OPSS, 1070 mm tynes
Right machine if…
- Steel, stone, paper rolls, moulds, machinery and heavy building products
- Loads that regularly exceed 2.5 t
- Sites with wide aisles and rated floor slabs
Wrong machine if…
- Narrow aisles — turning radius is about 2.5 m
- Mezzanines or ramps not rated for a ~5 t service weight
- Sites without three-phase power
Why sites pick the EFX5-351
- 24 kW lift motor (S3 15%) — strong full-load lift speed
- Highest capacity in the fleet
- Shares the EFX5 platform: same charger, same parts, same service
Rated capacity applies at a 500 mm load centre at low height. Residual capacity reduces with lift height, long loads and attachments — we verify the manufacturer load chart against your heaviest pallet and top beam height before recommending any machine.
Full technical specifications
EP EFX5 series official brochure (PDF)OUR HIRE CONFIGURATION
- Mast
- 4.5 m triplex
- Battery
- 80V / 280Ah lithium (≈22.4 kWh), modular
- Charger
- 80V/60A, three-phase supply (manufacturer lists 60A as on-board; dealer quote sheet lists external — confirmed at delivery)
- Attachments
- Side shift · 4-spool valve · 1070 mm tynes · solid tyres · OPSS · LED · fleet management (1 yr)
CAPACITY & WEIGHTS
- Rated capacity
- 3,500 kg @ 500 mm load centre
- Service weight
- 5,020 kg ⁱ
- Axle load laden, front/rear
- 7,290 / 1,230 kg ⁱ
- Wheelbase
- 1,760 mm
DIMENSIONS
- Overall width
- 1,230 mm
- Length to fork face
- 2,754 mm
- Turning radius (Wa)
- 2,498 mm
- Ground clearance
- 150 mm
- Mast lowered height (4.5 m 3-free mast)
- 2,160 mm
- Mast extended height (4.5 m mast)
- 5,270–5,675 mm
- Free lift (4.5 m 3-free mast)
- 1,065–1,470 mm
- Fork dimensions
- 122 × 50 × 1,070 mm
PERFORMANCE
- Travel speed, laden/unladen
- 16 / 17 km/h
- Lift speed, laden/unladen
- 0.44 / 0.55 m/s
- Lowering speed, laden/unladen
- 0.50 / 0.44 m/s
- Max gradeability, laden/unladen
- 18% / 25%
DRIVE & BATTERY
- Motors
- 16 kW drive (S2 60 min) · 24 kW lift (S3 15%)
- Modular battery
- 1× 280Ah standard — field-expandable to 560Ah
- Charger options
- 35A/60A on-board · 65A/100A/150A/200A external (200A requires dual 280Ah battery)
Figures marked ⁱ are manufacturer standard-configuration values from the official brochure; hire machines are delivered in the configuration listed under “Our hire configuration”. The load chart fitted to the delivered machine always governs capacity at height and with attachments.
See it working
Official manufacturer footage of the EFX5-351 platform — the machine itself, not marketing renders.
X5 series is here — Electric counterbalance 3000–3800 kg (official) Videos play from YouTube's cookie-free domain and load only when you press play.
Questions we get about the EFX5-351
When should I take the 3.5 t over the 2.5 t?
If your heaviest regular load exceeds 2.5 t — or sits close to it on long or offset loads — the 3.5 t gives you genuine headroom for only a small step in weekly rate. Running a 2.5 t machine at its limit every day is a safety and wear problem.
Will my floor handle it?
The EFX5-351 has a service weight around 5 t before the load. We check floor slabs, mezzanines, ramps and dock plates as part of the site assessment before delivery.
How much aisle width does it need?
Turning radius is approximately 2.5 m. As a rule of thumb allow 4 m+ working aisles for pallet work — we confirm this against your racking layout during the fit assessment.
Is the EFX5-351 right for your site?
Send us your loads, lift heights and power supply — we’ll confirm the load chart and quote it the same day.
